Profile BB Axle 19mm 48 Spline (GDH Cro-Mo)

GDH CHROMOLY CRANK AXLE-19MM

The Profile Gun Drilled Hollow (GDH) 19mm Crank axles are a great way to take a large chunk of weight off of your bike without sacrificing a great deal of durability.

-Uses GDH Crank Tool. Older crank tools will not work.

-Includes 6mm GDH  CrMo crank bolts and aluminum flush washers.

-The GDH CrMo axle has the same Limited Lifetime Warranty as our Race Cranks.

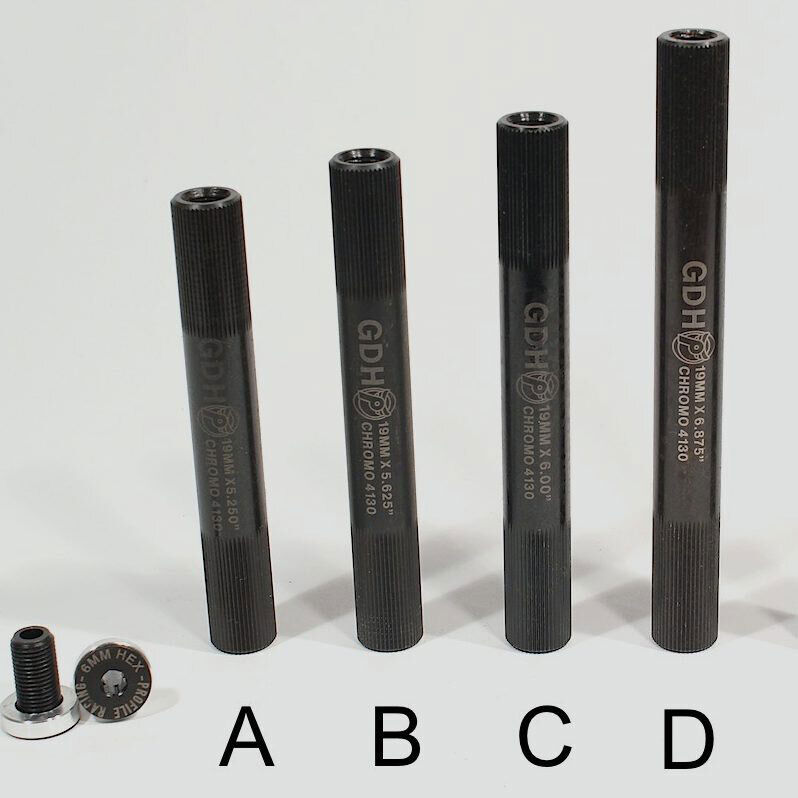

Sizes: 5.25″, 5.625″, 6.00″, 6.875″

A. 5.25″ (133.3mm) For Track Bikes
Weight: 188g / 6.6oz

B. 5.625″ (142.87mm) For BMX Freestyle Bikes
Weight: 203g / 7.15oz

C. 6.00″ (152.4mm) For 68mm & 73mm external Euro BB’s, Press fit BB’s
Weight: 217g / 7.65oz

D. 6.875″ (174.62mm) For 83mm Euro BB’s
Weight: 255g / 8.95oz



—————————
GDH Bolt Comparison Weights:

CrMo GDH Bolt set:
Weight: 40g / 1.4oz

7075 Aluminum GDH Bolt set:
Weight: 17g / .55oz

Titanium GDH Bolt set:
Weight: 25g / .85oz

SKU 25BBRAX19100
Brand Profile Racing
Shipping Weight 0.2750kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.200m
